Trilobite |
|||||||||||||||||||||||||
 |
|||||||||||||||||||||||||
Trilobite is Kitbots new Beetleweight Brick/Wedge Kit. Designed as an entry level bot to give newcomers to the sport a way of building a competive machine without the
complexities and expense of an active weapon. |
|||||||||||||||||||||||||
 |
|||||||||||||||||||||||||
Building on the technology developed for the Weta Drum Beetle kits, Trilobite

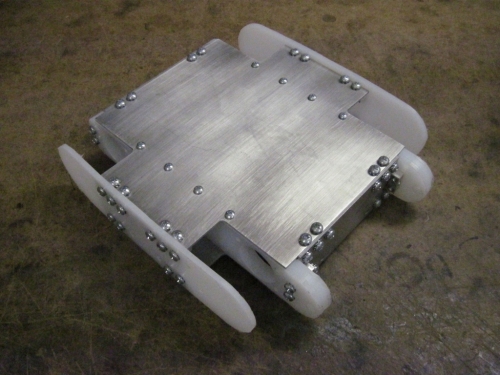

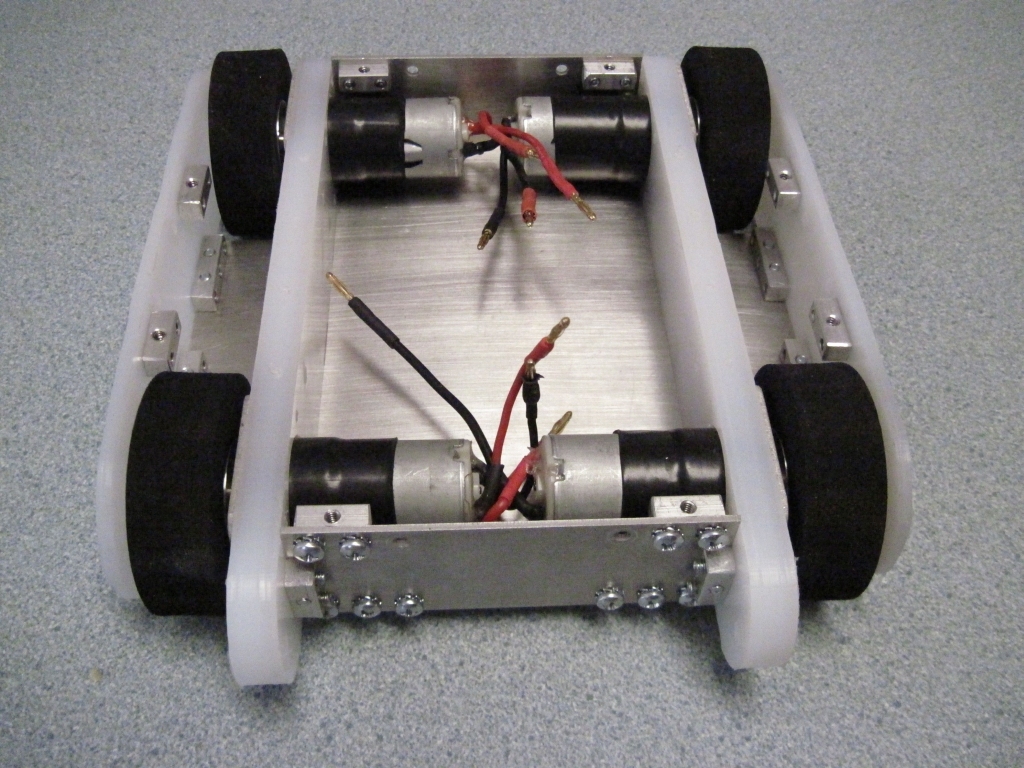

use 3/8" UHMW main rails combined with watercut 7075 Aluminium panels and mini nutstrip to construct a rigid and very tough base chassis. Drive is provided by four 1000rpm Motors, 2.25" Liteflight Wheels
powered by a 4S LiPo Battery. The wheels are well protected by UHMW side armor but exposed at the rear so as to ensure they can always get a grip and reduce the chance of the bot getting trapped. |
|||||||||||||||||||||||||
A wedge can be securely attached to the front of the bot using a 1/4" Titanium axle. Wedge shown is one made for its first competition. No wedge is supplied with the kit although kitbots can make one on request. |
|||||||||||||||||||||||||
 |
|||||||||||||||||||||||||

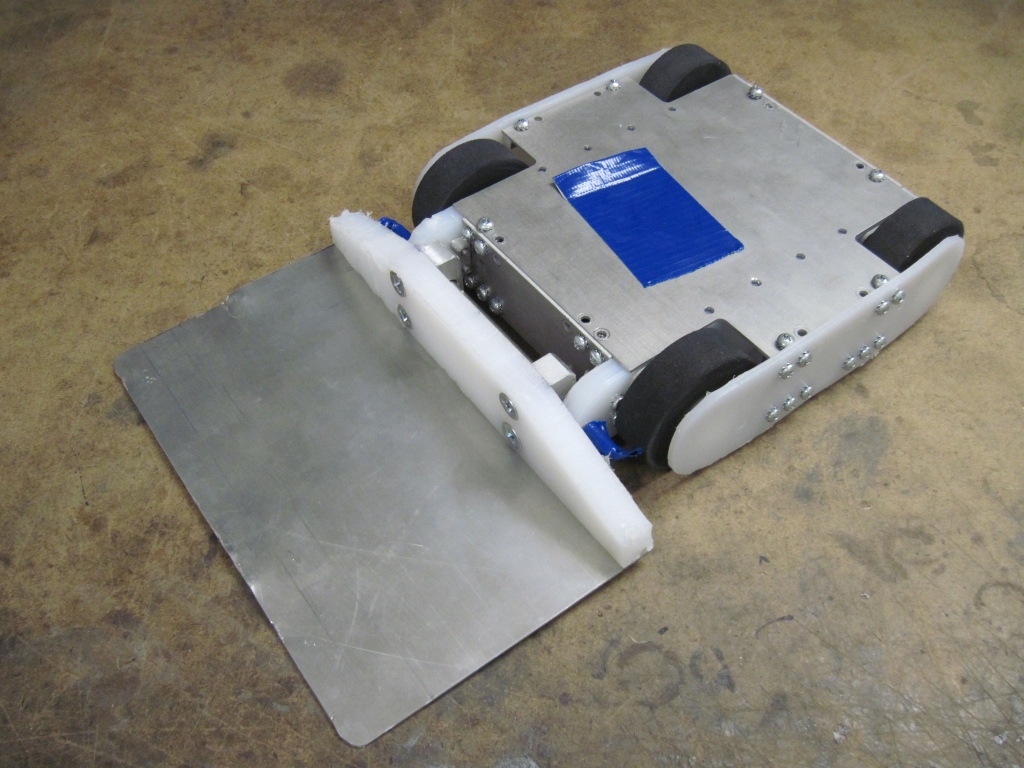

Trilobite before Shiele Museum Event |
|||||||||||||||||||||||||
Weight Calc spreadsheet Updated 06122015 |
|||||||||||||||||||||||||
 |
|||||||||||||||||||||||||

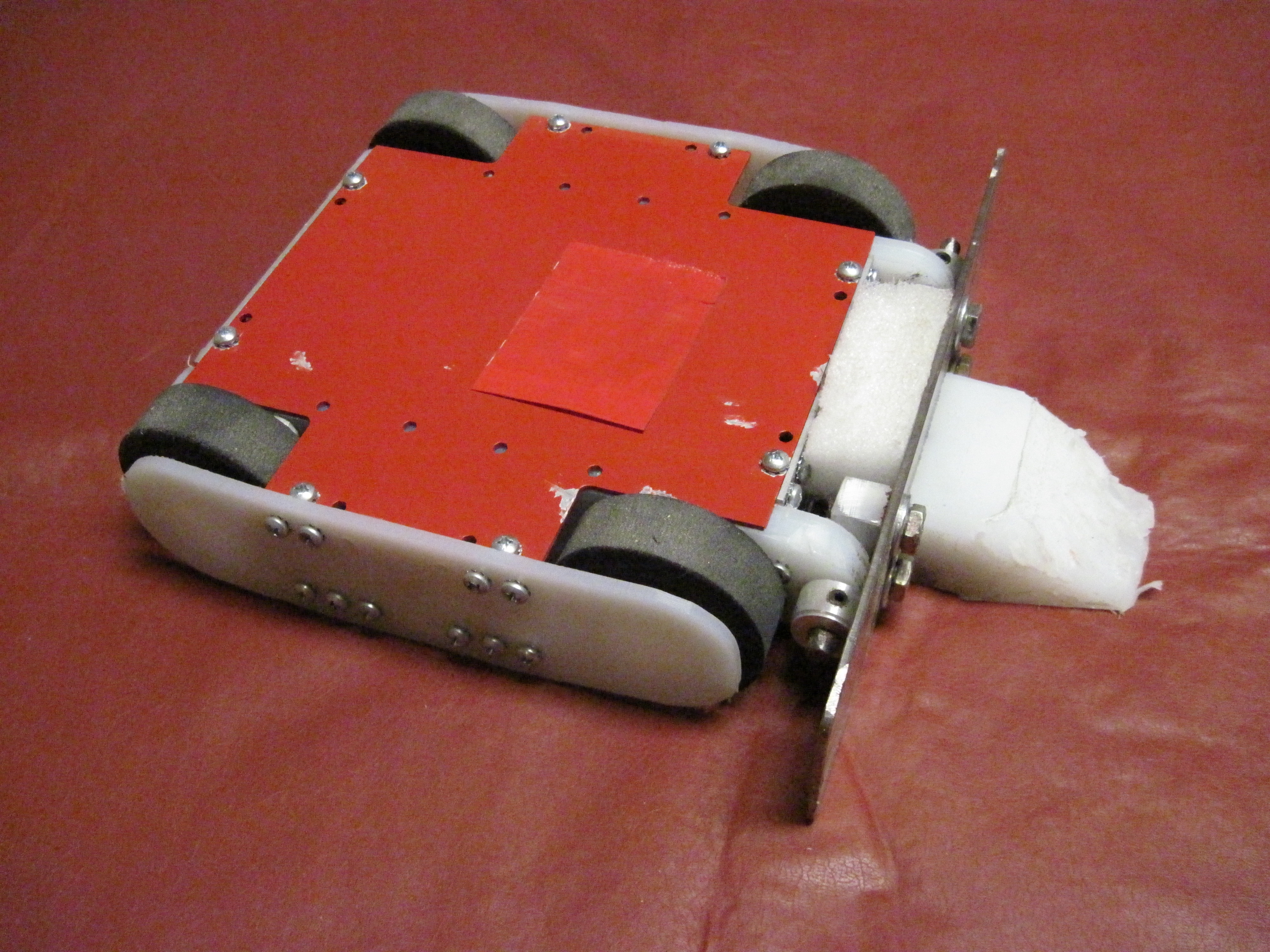

Trilobite after taking 1st place at Franklin 2011 |
|||||||||||||||||||||||||
